Veta Data Management and Analysis Software

Veta 5

Veta is a map-based tool for viewing and analyzing geospatial data.

Veta can import data from various intelligent compaction (IC) machines and paver-mounted thermal profilers (PMTP) to perform viewing, filtering, sublotting, spot test imports, and analysis. Veta displays compaction information in easy-to-read formats, including graphs and maps.

Veta 5.0 includes several new features and is faster and more customizable. In particular, support was added for direct download of Topcon IC data and MOBA thermal profiling data. All projects will be reprocessed when opened, which will take time. Changes and fixes to data processing will likely give different analysis results.

Click the file below to download Veta for free.

Veta 5.2.86November 13, 2019
Veta 5.2.81September 6, 2019
Veta 5.2.75May 31, 2019
Veta 5.2 Release NotesNovember 13, 2019
Veta 5.1.21July 27, 2018
Veta 5.1 Release NotesJune 27, 2018
Veta 5.0.51April 20, 2018
Veta 5.0 Release NotesApril 20, 2018
Veta 4.3.28January 5, 2018
Veta 4.3 Release NotesJanuary 5, 2018

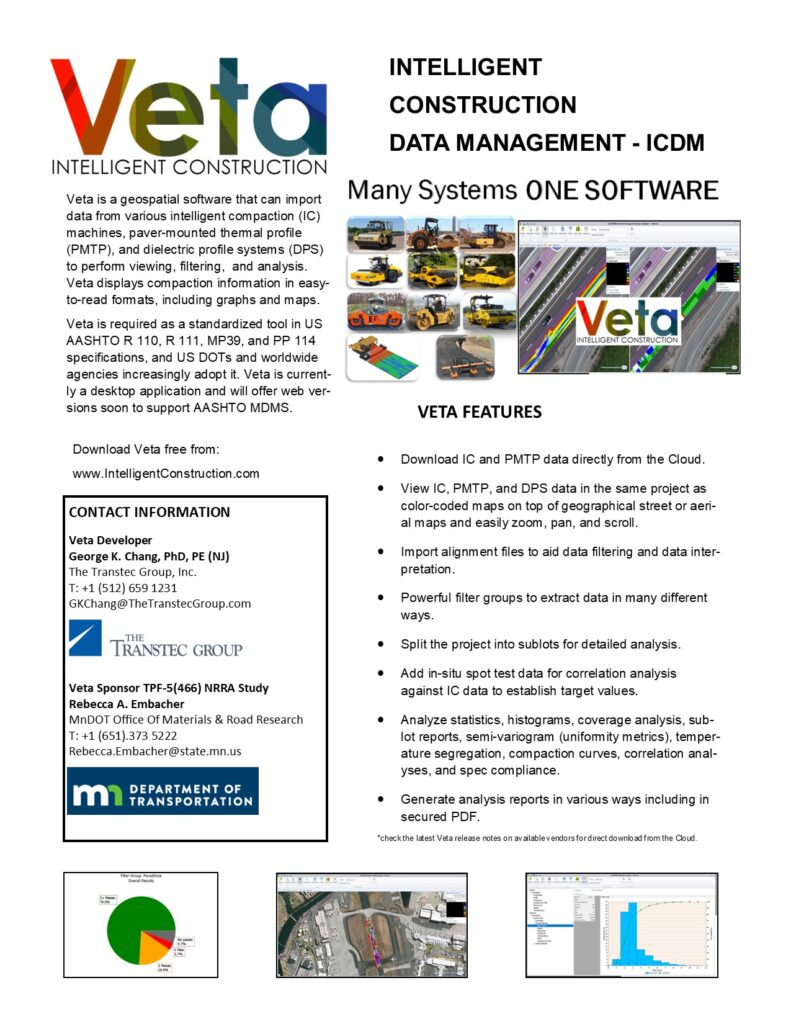

Veta IntroductionMarch 18, 2018
User's Guide (Veta 3)May 25, 2015

Veta requires Windows 7 SP1 (64-bit) or later. Microsoft .NET 4.6.2 or later is required.

Veta will run with 4 GB of RAM, but we recommend at least 8 GB.

Access to the following web sites is required for full functionality:

  • Mapping –
  • MOBA data download –
  • Topcon data download –

Previous versions of the same family will be automatically uninstalled. For example, 5.2 will uninstall previous 5.2 versions, but will not uninstall 5.1. The two versions can co-exist side-by-side.

You must have sufficient privileges to install applications on your computer. If you receive an error message during the installation, ask your administrator to install the software for you. If your administrator is also unable to install the software, then please contact us.

To uninstall the software, go to Programs and Features in the Windows Control Panel.

If you’d like to be notified by email when new versions of Veta are released, sign up for Veta update announcements.

Subscribe to Veta Updates

MnDOT logo

Veta is currently funded by MnDOT and the TPF-5(334) Study

Veta is free to download, but not free to develop and maintain. Please contact your local DOT research department and ask them to join the Transportation Pooled Fund Study “TPF-5(334) Enhancement to the Intelligent Construction Data Management System (Veda) and Implementation” to keep Veta available and free to download.

Transportation pooled fund program

Data Compatibility

Vendors Consists of Raw DataConsists of All-passes DataMeet AASHTO/FHWA Requirements
Atlas Copco Dynapac/DynalyzerYY
Atlas Copco Dynapac/TopconYY
Using Veta

Veta in Specifications

Veta is required in the Federal Highway Administration’s generic IC specifications and AASHTO IC Specifications for soils, and asphalt materials. Veta is also increasingly adopted by US Departments of Transportation. See the IC specifications page for further details.

Get started with Veta today.
